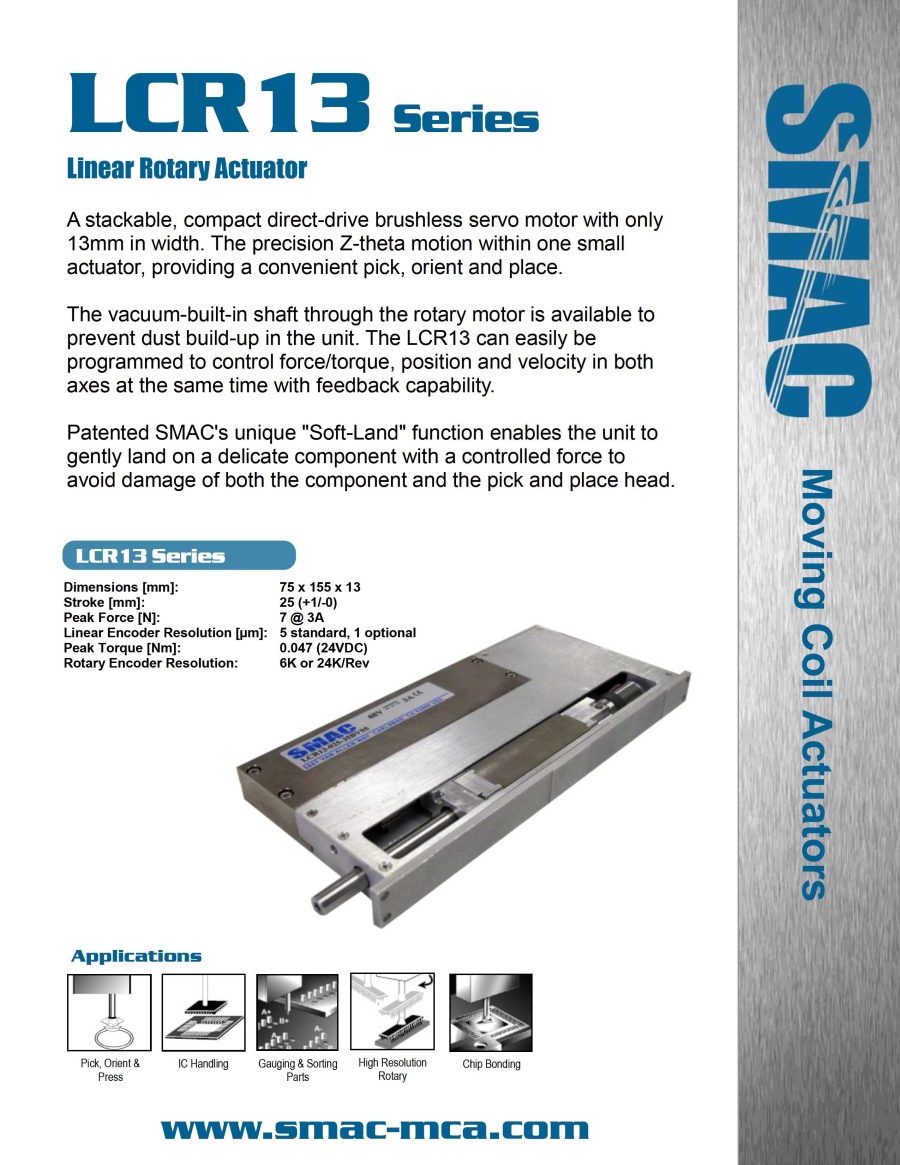

LCR系列-線性加旋轉致動器
LCR系列-線性加旋轉致動器

LCR系列是LCA系列延伸出的線性加旋轉轉致動器,此款轉致器是直接與無刷伺服馬達進行安裝。

內建自潤式線性滑軌,提供更長的循環壽命並且有軟著陸以及可程序化的功能,更可精確地控制力量/扭力、位置、加速度以及速度。

►軟著陸功能

►MTBF一億次的循環壽命

►真空軸可避免灰塵累積

技術規格



Linear encoder resolutions: 5µm standard, 1µm and 0.1µm optional for most units. Consult factory for availability.

Shaft ends: Male, Female, Blank and Custom (check availability of custom option)

Return spring: Prevents the shaft from dropping during vertical operation when power is cut.

Vacuum: For pick and place applications

Extended nose bushing: For tighter shaft run-out and higher side load onto the shaft.

Increase of max. force and acceleration: 48 volt coil and double coil options are available for some units with 24 volt single coil.

Increase of torque/gear ratio: Alternative geared motors are available. Please consult factory.

Rotary encoder resolution: Consult factory for higher resolution.
