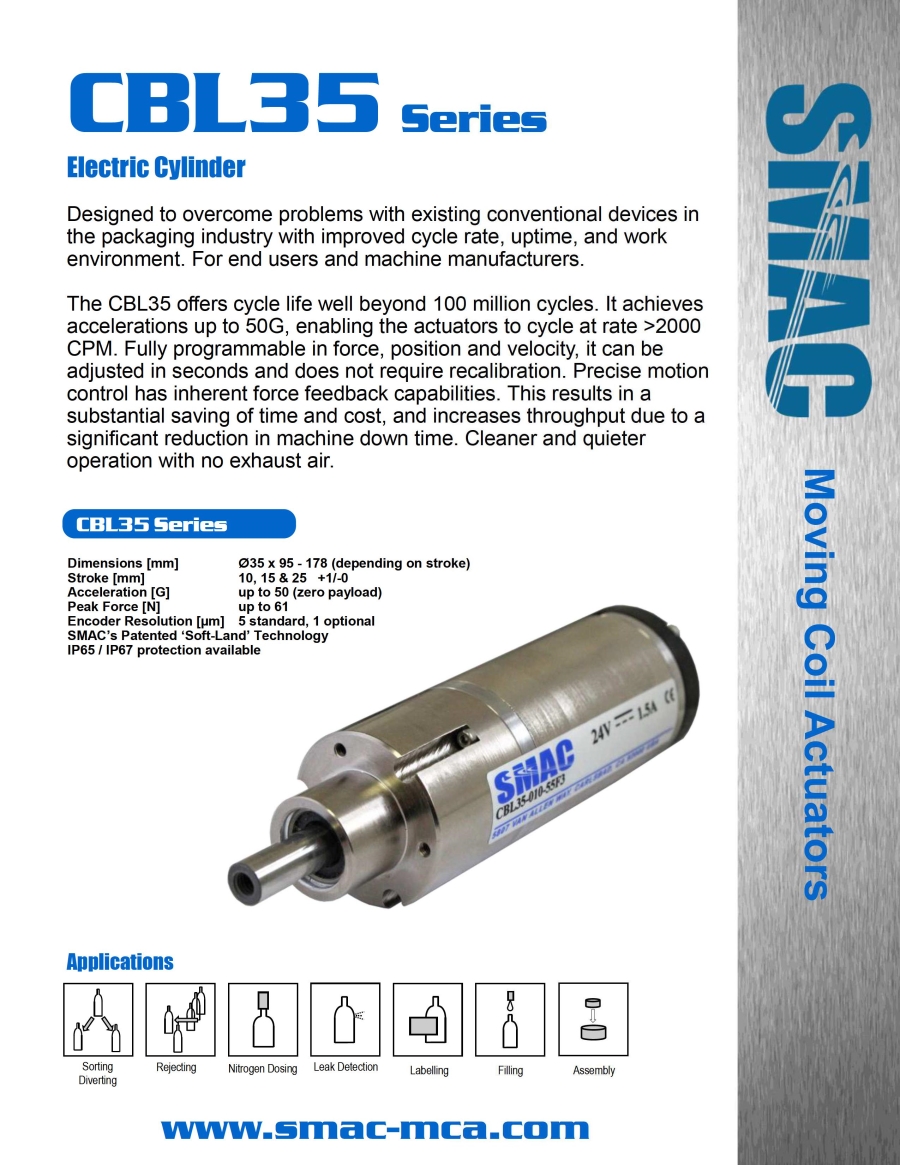

SMAC最新圓形音圈致動器，此款設計解決了包裝產業設備上的困難並且提供更高速度、精準、效率及價格。
CBL系列卓越的性能著實降低生產作業上的費用，使得此系列成爲新機台或是更新機台的最理想選擇。
►價格有競爭力
►可同時間分別控制速度、位置以及力量
►無需氣體且可安靜運轉
►超過一億次使用壽命
►位置、速度以及力量都可程序化
►快速循環时间大于2000 CPR
►因有“軟著陸”的功能產品的定位可更高精准
►可百分之百反饋操作數據之數據
►非常適合於無塵室內使用
Linear encoder resolutions: 5µm standard, 1µm and 0.1µm optional for most units. Consult factory for availability.
Shaft ends: Male, Female, Blank and Custom (check availability of custom option)
Return spring: Prevents the shaft from dropping during vertical operation when power is cut.
Vacuum: For pick and place applications
Extended nose bushing: For tighter shaft run-out and higher side load onto the shaft.
Increase of max. force and acceleration: 48 volt coil and double coil options are available for some units with 24 volt single coil.
Increase of torque/gear ratio: Alternative geared motors are available. Please consult factory.
Rotary encoder resolution: Consult factory for higher resolution.
